Heavy-duty Truck Specific Handshake Valve Pneumatic Source Lockout

• Brand: BOZZYS
• Model: QP1-B01
• Product Name：Heavy-duty Truck Specific Handshake Valve Pneumatic Source Lockout

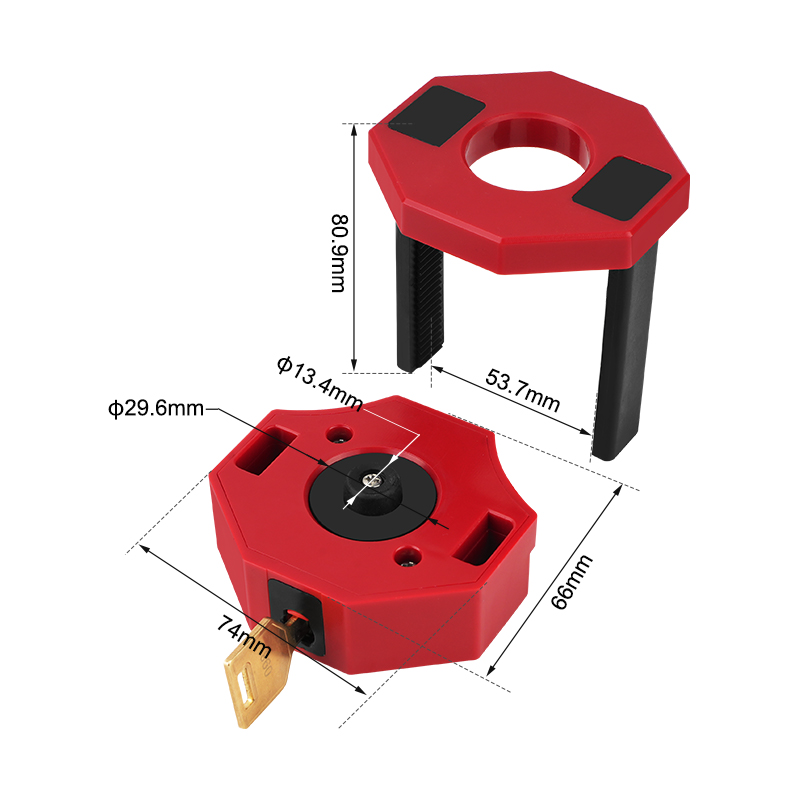

• Dimensions: Outer diameter 66mm x Outer diameter 74mm x Outer diameter 80.9mm
• Installation Dimensions: Outer diameter 74mm * Inner diameter 53.7 * Inner diameter 29.6mm
• Material: PA+ABS engineering plastic
• Colors: Red, Black; Customizable
• Application Scope：Designed for scenarios such as container parking at docks, long-distance transport waiting, and temporary shutdown for maintenance. Suitable for the safe isolation of the air source connection between the main vehicle and the container truck. Widely used in container transport, cold chain logistics vehicles, dock freight equipment, chemical raw material transport containers, and other scenarios requiring air source isolation.

• Carefully Selected Materials: The heavy-duty truck handgrip valve air source lock is made of PA+ABS engineering plastic, wear-resistant and impact-resistant, suitable for harsh environments such as outdoors and docks.
• Universal Design: Compatible with most handgrip valve air source interfaces on the market, while also accommodating European and American standards, eliminating the need for separate adaptations for different vehicle models/container types.
• Lightweight and Compact Design: Easy to carry and install, suitable for narrow interface spaces.
• Through a precise sealing design with rubber parts aligned with the air holes, the air source interface is effectively sealed and isolated after locking, preventing air source leakage during downtime and ensuring the safety of energy isolation.
• Dustproof design effectively resists dust intrusion at docks/during transportation, extending the service life of truck handshake valves.
• Integrated lock cylinder design with a unique, non-copyable key, ensuring locking security.
• High-visibility red warning for easy identification during on-site security inspections

Suitable for logistics companies, dock storage enterprises, container operators, etc.

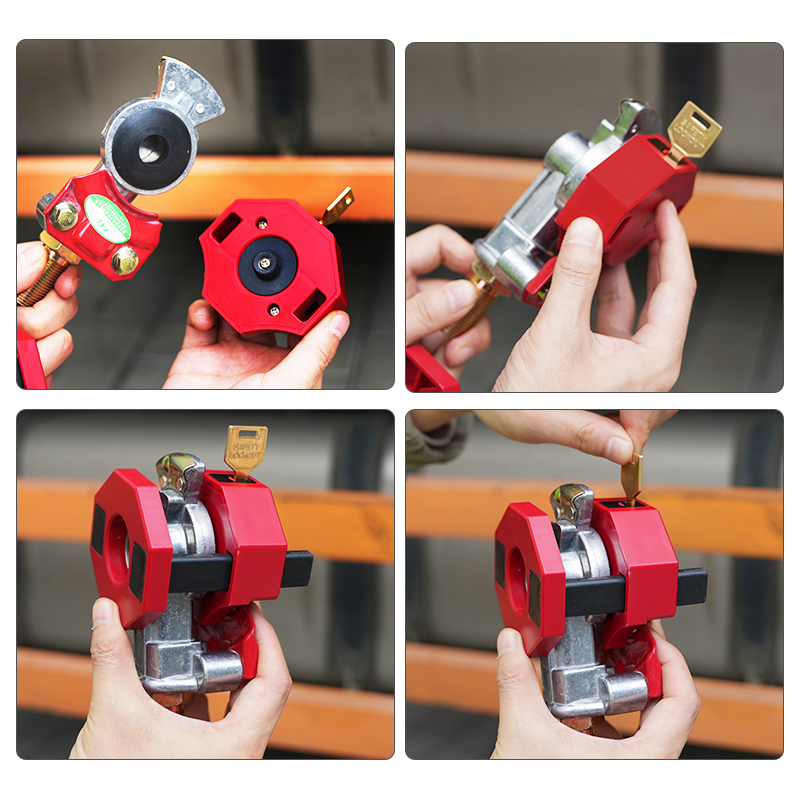

• Use the provided key to open the lock, disassembling it into two parts: A (with lock cylinder) and B (U-shaped component). (Note: To ensure a tight seal, please clean the air supply interface before locking to remove impurities and oil.)
• Insert A (with lock cylinder) into the valve port from one side, ensuring the rubber parts are precisely aligned with the air vent for a secure seal.
• Insert B (U-shaped component) from the other side, bringing A and B together as close as possible. Rotate the key 90 degrees counterclockwise and remove it. Move the sliding cover to complete the locking operation.

• Customizable body and rotating plate colors to meet unified brand requirements.

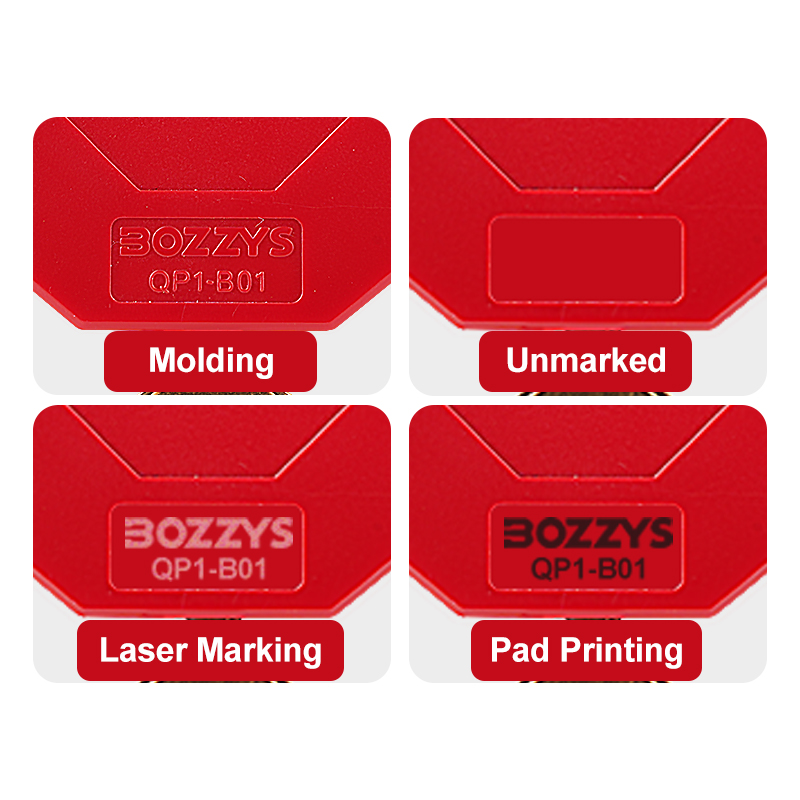

• The lock body can be molded into a neutral (unmarked) version or a version with the customer’s logo.
• OEM Customization Supported

• 15 Years of Industry Experience: Deeply rooted in the LOTO field, serving 5000+ industrial enterprise clients
• Customization Service: Supports customization of special specification keyhole locking devices; 3-minute response time, 3-day solution development, and 30-day fast delivery.
• After-Sales Commitment: 3-year product warranty, free technical consultation and installation guidance.
• Compliance Support: Assists enterprises in OSHA/GB standard compliance training and solution optimization.
